R-W10D4

R-W10D4

12″ (30 CM) SUBWOOFER (4Ω+4Ω)

Alpine is proud to announce the introduction of the new R-Series Subwoofer lineup that is built off the highly esteemed Type R platform. With select key design and build improvements, the R-Series Subwoofer is able to output more of that deep bass extension and control that the Type-R is known for.

Compare

Guaranteed Safe Checkout

Description

The new R-Series subwoofers take a great platform to the next level. Although the R-Series subwoofers are new for 2017, they actually come from an impressive Alpine lineage – the Type-R subwoofers. Type-R subwoofers have been known for their power handling, clean output and deep bass excursion at a mid-line price. Using the highly successful Type-R subwoofers as a foundation, we applied various performance and hardware improvements to the design, essentially transforming them into the new R-Series subwoofers – The Next Evolution of Proven Performance.

The Next Evolution of Proven Performance

Talc, a common mineral used in products such as baby powder and paint, has been found to have incredible damping properties while being less dense than the traditional Mica filler used in dust caps. By adding a calculated amount of talc to the mica polypropylene in the dust cap, we were able to increase vibration absorption of the cap while lowering the density. The resulting lighter dust cap contributes to a faster attack and a more accurate reproduction of low frequencies.

More Rigid Dust Cap

R-Series subwoofers feature a Kevlar-treated cone for durability. The combination of this cone with the Santoprene surround allows the subwoofer to deliver 19mm of X-max, for incredible, hard-hitting bass. A new method of attaching the spider and cone to the voice coil ensures not only rigidity throughout the motor structure but contributes to the subwoofers increased accuracy.

Stronger Cone Assembly

Additional information

Subwoofer Type	10′′ (25 cm) Subwoofers (4Ω + 4Ω)
Frequency Response	26 Hz – 200 Hz
Power handling	2250 Watts peak power 750 Watts RMS power

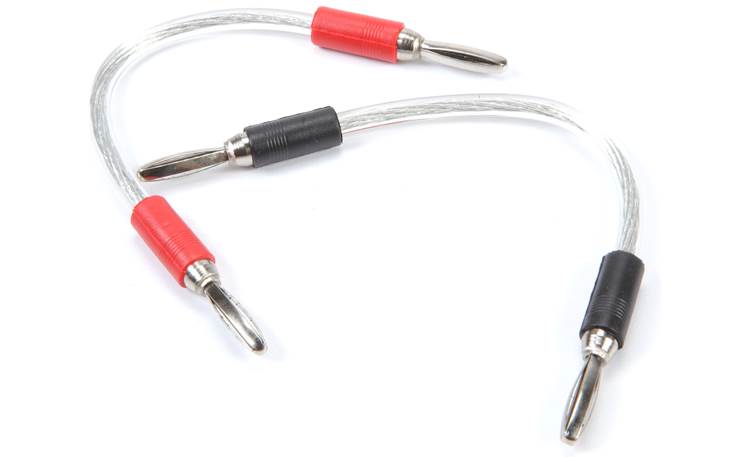

Design	Cast Aluminum frame H.A.M.R surround Heavy Duty 8 gauge Push with Housing, Banana Plug Jumper
Dimension	Mounting diameter : 230.5mm Mounting depth : 149 mm
